Gemini 336L Stereo Vision Camera

Gemini 336L Stereo Vision Camera

  • Active/passive stereo ensures reliable performance in dynamic environments.

  • Outdoor and indoor operations with lP65 rating.

  • Built-in depth and RGB image processing.

  • Wide Field of View at 90° Horizontal and 65° Vertical; a Spatial Precision (Root Mean Squared Error: RMSE) of lessthan 0.8% for depth measurements at 2m.
$379.00
$399
$399 - $399
$399
$379.00 - $379.00
$379.00
Save 5% Save 5%
Shipping & Return

5-10 business days. (Note: The delivery time of pre-sale products is subject to the arrival time.)

Orbbec only accepts return requests due to quality issues.

Applications

Autonomous Mobile Robots
Targeted enhancement of depth imaging quality in reflective areas of high-gloss floor paint or tiled floors under indoor incandescent lighting.
3D Reconstruction / 3D Body Scanning
Unaffected by ambient lighting, maintaining excellent depth quality and performance to meet the high-precision imaging requirements for 3D reconstruction and scanning.

Specifications

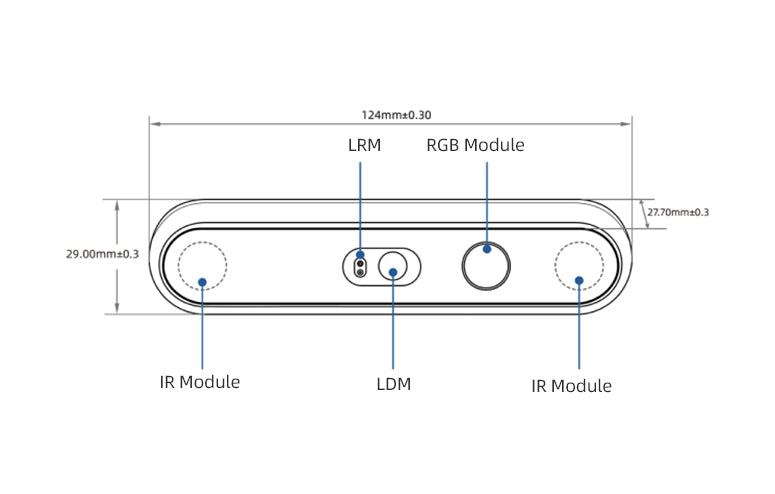

Gemini 336L Dimensions
Product Parameter

  • Product Name

  • Gemini 336L

  • Use Environment

  • -10℃ - 50℃; Indoor/Outdoor;

    5%-90%RH (non-condensing)

  • Depth Technology

  • Active Stereo IR

  • Wavelength

  • 850nm

  • Depth Range

  • *0.17-20m+ (Optimal Range: 0.25-6m)

  • Depth Resolution/FPS

  • Up to 1280X800@30fps

  • Depth FOV

  • H90° V65°

  • RGB Resolution/FPS

  • Up to 1280X800@60fps

  • RGB FOV

  • H94° V68°

  • Depth Filter

  • IR-Pass

  • Processing

  • Orbbec ASIC

  • IMU

  • Supported

  • Data Connection

  • USB 3.0 Type-C

  • Power Input

  • USB 3.0 Type-C

  • Trigger

  • Supported

  • Power Consumption

  • Average <3W

  • SDK Support

  • Orbbec SDK

  • Data Output

  • Point Cloud, Depth Map, IR & RGB

  • Dimensions (W*H*D)

  • 124 mm x 29mm x 27.7 mm

  • Weight

  • 135g

  • Installation

  • Bottom: ¼-20UNC; Back: 2x M4

  • OpenCV(OpenCV >= 4.10)

  • Linux (Ubuntu 20.04/22.04 (x64))

    Linux (Ubuntu 20.04/22.04 (arm64[1]))

Video

Development Documentation

Streamlined Development Support
Orbbec SDK, comprehensive development documentation, sample programs, and camera firmware OTA update are available.

Shipping List

Gemini 336L、Tripod、USB Cable
