MS200k Lidar

MS200k Lidar

  • Up to 12-meter measurement range.

  • Up to 4500Hz sampling rate with the minimum angular resolution of 0.4°.

  • Class 1 safety standards.

  • 54.3mm x 47.0mm x 35.0mm (L*W*H), Ultra-small size.
$80.00
$100
$100 - $100
$100
$80.00 - $80.00
$80.00
Save 20% Save 20%
Shipping & Return

5-10 business days. (Note: The delivery time of pre-sale products is subject to the arrival time.)

Orbbec only accepts return requests due to quality issues.

Applications

Sweeper Positioning and Navigation
The MS200k provides the sweeper with accurate environmental awareness for intelligent path planning and obstacle avoidance.
Robot Obstacle Avoidance
The MS200k helps outdoor delivery robots by generating real-time 2D maps and navigation data to detect objects and help avoid obstacles.
Compact Size and Light Structure
With a flat design, a slim height of only 3.5 cm, and a lightweight weight of 45 grams, the internal space utilization of the application product is significantly improved.
12m Scanning Radius
The ability to detect environmental information at greater distances ensures that the robot has a wide range of cruise and map-building capabilities suitable for most indoor applications.
Sample Frequency
Sampling frequency is the core parameter of LiDAR, 4500Hz can guarantee the acquisition of map navigation data stream.
Resistance to the Ambient Light
It can withstand 40klux strong light environment, to achieve indoor high frequency and high precision distance measurement.
360° Scan
It can scan 360° in all directions to continuously capture detailed Angle data of the surrounding environment.

Specifications

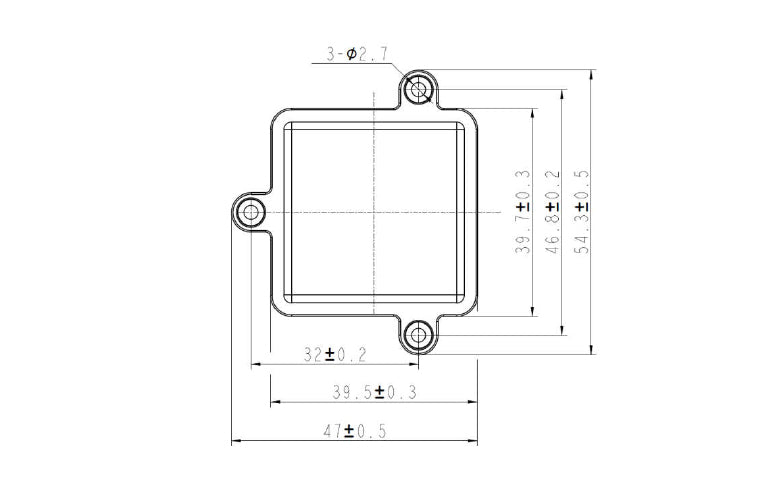

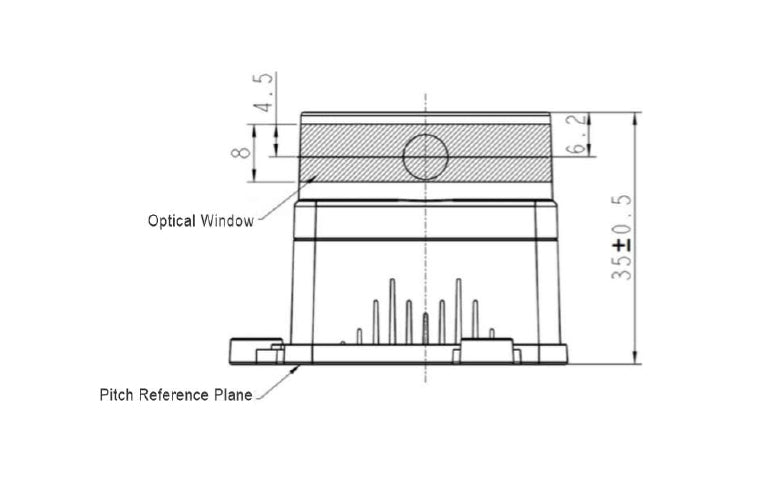

MS200k Lidar Dimensions
Product Parameter

  • Product Name

  • MS200k Lidar

  • Measurement Range

  • 0.03m~12m@90% Reflectivity

  • Distance Accuracy

  • Typical Values ±10mm [0.03m~ 2.0m), ±20mm [2.0m~12.0m]

  • Distance Precision

  • Typical Values ≤4mm [0.03m~2.0m), ≤15mm [2.0m~12.0m]

  • Data Output

  • Distance, Angle, Intensity, Timestamp

  • Horizontal Fov

  • 360°

  • Measurement Frequency

  • 4,500Hz

  • Frame Rate

  • 7~15Hz, Default 10Hz

  • Angular Resolution

  • 0.8°@10Hz

  • Laser Pitch Angle

  • 0.5~2°

  • Laser Wavelength

  • 905+10nm

  • Laser Safety

  • Class 1

  • Ambient Light Luminance

  • 40000 Lux

  • Voltage Supply Range

  • DC 5.0+0.3V

  • Voltage Supply Ripple

  • <100mV

  • Peak Power Consumption

  • 2.5W

  • Dimensions

  • 54.3mm x 47mm x 35mm(L*W*H)

  • Weight

  • ≈45g

  • Operating Temperature

  • -10°C~50°C Typical 25°C

  • Certification

  • ROHS 2.0, REACH, CE, FCC

Development Documentation

Abundant Secondary Development Data
It provides the MS200k system Software Development Kit (SDK) and debugging tools, along with detailed tutorial guides and comprehensive technical support.

Shipping List

MS200k、Serial Adapter Board、Connecting Line
